| Voltage | Power | NW KG | GW KG |
|---|---|---|---|
| 220 V / 380 V | 6 HP | 600 | 680 |
| Volume ( L x W x H cm ) |
Carton size ( L x W x H cm ) |
Air | Cycle time |
| 256 x 150 x 185 | 84 x 71 x 36 | 8 kg / cm | 7 pcs / min |
Products

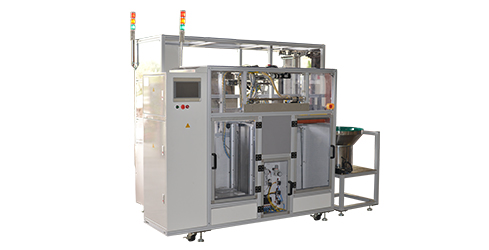

Auto. Cartoner Machine
- The whole machine adopts aluminum extrusion manufacturing structure, the use of servo motors can accurately locate the components and instructions into the box, and then with a unique folding boxes designed to ensure the appearance of folds neatly and the drawer is not damaged, finished packaging can be detected too heavy or too light NG pieces through weighing modules to ensure quality.
- Packing machine with trays transfer mechanism, the user can place components on trays ( TRAY plate ) inside, and each of the trays are stacked in the transfer mechanism, the transfer mechanism will automatically reel gripping position middle reclaimer area, use the jaws to clamp components one by one to the conveyor belt into the packaging machine to process, take the empty trays completed pieces will be moved by the transfer mechanism empty trays stacked area.

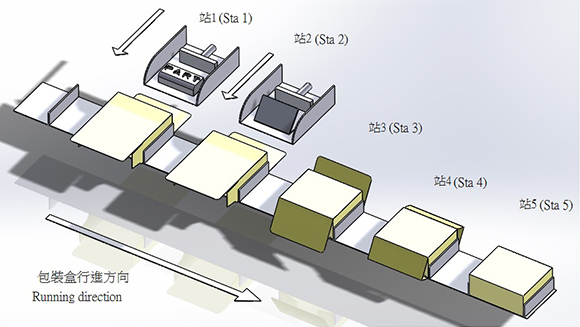

- Box sequentially advancing station 1, the machine will push the tray components, will be traveling to the station two manual push the tray, sequentially advancing station 3, the station will cover 4 and under cover sealing, arrival station 5 Complete package
